Firmware
Custom firmware (thesada-fw) for all Thesada nodes. Supports multiple ESP32 board variants with compile-time module selection. This section documents the firmware architecture, configuration, and testing.
Quick links
| Architecture | Module design, boot sequence, Shell, Lua, OTA, connectivity |
| CLI Reference | Every shell command across serial, WebSocket, and MQTT |
| MQTT Topics | Every topic the firmware publishes or subscribes to |
| Chunked File I/O | Read and write device files larger than the MQTT buffer |
| Lua Scripting | Lua 5.3 runtime, EventBus, alert patterns, hot-reload |
| Config Management | config.json shape, save/reload, drift hashes, recovery |
| Testing | Test script, manual checks, section-by-section verification |
| Source | GitHub - GPL-3.0-only |
Feature overview
| Feature | Notes |
|---|---|
| WiFi multi-SSID | Ranked by RSSI; NTP synced on connect |
| LTE-M/NB-IoT fallback | SIM7080G modem-native MQTT over TLS; reverts to WiFi automatically |
| TLS MQTT | CA cert from LittleFS (/ca.crt); PROGMEM bundle (Let’s Encrypt + GitHub roots) takes over if the file is missing |
| MQTT connection reliability | 10 min watchdog, TCP keepalive (30s/10s/3), auto-reconnect on half-open sockets |
| HA MQTT discovery | Auto-registers all sensors in Home Assistant on connect; no manual YAML needed |
| DS18B20 temperature | OneWire, multi-sensor, auto-discovery, retry on disconnect, last-known-value fallback |
| SHT31 temperature + humidity | I2C, raw driver (no external library), configurable interval [ENABLE_SHT31] |
| ADS1115 current sensing | RMS sampling (30 samples over 2 cycles at 60Hz), outputs amps for SCT-013-030 |
| Battery monitoring | AXP2101 voltage, state of charge, charge status; MQTT publish + low-battery alert |
| SD card logging | CSV, per-boot files, configurable max file size with auto-rotation |
| Lua scripting | Lua 5.3 runtime; hot-reloadable rules, EventBus + MQTT bindings |
| Shell CLI | Commands over serial, WebSocket, HTTP (POST /api/cmd), and MQTT (cli/#) |

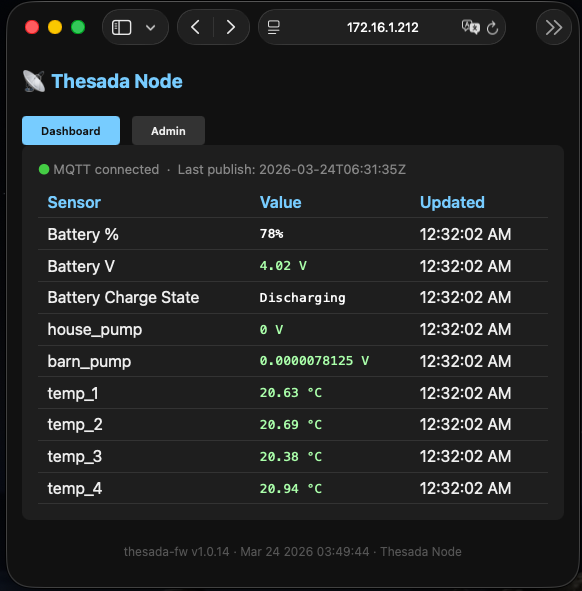

| OTA - push | Upload .bin via web dashboard or curl |
| OTA - pull | Fetch manifest, SHA256 verify, auto-install. Watchdog-safe download loop tolerates flaky wireless links without panicking mid-flash |
| OTA - PROGMEM CA fallback | Common public TLS roots baked into the firmware. OTA + MQTT stay TLS-verified even when /ca.crt on LittleFS is missing or wiped |
| OTA - structured events | <prefix>/status/ota publishes updating, up-to-date, refused (with kebab reason), or failed JSON on every OTA code path |
| OTA force mode | ota.check --force bypasses version check - dev iteration without version bumps, and recovery of stuck devices |
| PSRAM support | 8 MB external PSRAM on ESP32-S3 targets via memory_type=qio_opi; heap-hungry modules (Lua, TLS buffers) can route to PSRAM |
| Heap + PSRAM telemetry | Free / min free / max alloc block / PSRAM free published to MQTT every 5 min with HA auto-discovery for each metric |
| Debug CLI | ota.status (partition + rollback state), chip.info (rev, flash, PSRAM, CPU freq), net.mqtt (subscription table + RX ring), net.http (auto-routed WiFi or cellular HTTPS GET), module.list, module.status |
| PowerManager LED | Blue CHGLED: heartbeat pulse, hardware charge indicator, or off |
| NTP log timestamps | ISO 8601 UTC in log lines once clock is synced |
| Temperature alerts | Threshold rules with hysteresis, MQTT + HTTP webhook |
| Low-battery alerts | Fires when battery below battery.low_pct; hysteresis prevents repeat alerts |
Hardware
| Board | PIO environment | Notes |
|---|---|---|
| LILYGO T-SIM7080-S3 | esp32-owb |
Primary target - all modules, cellular + PMU |
| LILYGO T-SIM7080-S3 (rescue) | esp32-owb-rescue |
Stripped recovery build for OTA rescue - bootloader-compatible, all optional modules off |
| LILYGO T-SIM7080-S3 (debug) | esp32-owb-debug |
Same hardware as esp32-owb, with CDC serial and the cellular-debug CLI commands enabled |
| ESP32-S3 bare devkit | esp32-s3-debug |
USB CDC serial, no LILYGO peripherals - bench bring-up target |
| ESP32-S3 bare devkit (rescue) | esp32-s3-debug-rescue |
Stripped recovery build for the bare S3 devkit |
Board-specific module overrides are in src/thesada_config.h. The default build targets the LILYGO T-SIM7080-S3; -DBOARD_S3_BARE switches to the bare ESP32-S3 devkit, -DBOARD_OWB_RESCUE strips every optional module for a minimum-flash recovery image.
